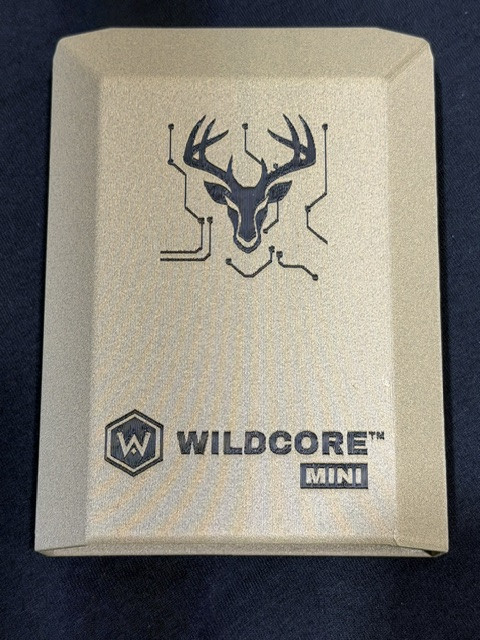

WildCore™ Mini
Professional WiFi feeder controller. Simple, reliable, and built to last.
Perfect for WiFi-Range Operations
Control your feeder locally via WiFi — configure on your schedule
WiFi Access Point
Creates its own WiFi network during configuration windows. Connect with your phone to adjust settings, test feeds, and view logs.
Local Web Interface
Full-featured web interface accessible at http://mywildcore.local during configuration windows. No app required — works with any phone or device.
Customizable Scheduling
Multiple daily feed times — by clock, or tie feeds to sunrise or sunset and let the schedule shift automatically all year. Each time can be individually enabled or disabled.
6V & 12V Dual System Voltage
Automatic voltage detection means no jumpers and no config. Plug it into whatever battery your setup runs and it just works.
Configuration Windows
You control when the feeder is accessible. Set up to 2 daily time windows (e.g., 8am and 6pm for 10 minutes each) or follow your feeding schedule. Perfect balance of convenience and battery life.
Battery Monitoring
Real-time voltage monitoring with status indicators (good/marginal/critical). Check battery health during any configuration window.
Event Logging
Device logs all feed events, configuration changes, and system notifications. Review history anytime you connect.
Manual Control
Trigger immediate test feeds with adjustable duration via web interface. Perfect for testing and troubleshooting.
Solar Ready
Works great with solar panels or larger battery packs. Configure more frequent windows for convenience with zero battery concerns.
How Configuration Windows Work
You decide when and how often you need access to your feeder. It's all about the tradeoff between convenience and battery life.
🚫 OFF
Best for: Max battery life
WiFi stays off entirely. To connect, press the wake button or power-cycle the controller — the interface comes up on demand, right at the feeder.
Battery impact: None
🌽 AFTER FEEDINGS
Best for: Checking in while you're out
WiFi turns on for 10 minutes after each scheduled feed. Swing by at feed time and the interface is already up — no button press needed.
Battery impact: Minimal (~10 min per feed)
📅 CUSTOM WINDOWS
Best for: Most users
Pick up to 2 daily windows (e.g., 8am & 6pm for 10 min each). The controller wakes itself, opens WiFi, then goes back to sleep.
Battery impact: 10 min/day = ~1% per month
🔄 ALWAYS ON
Best for: Solar setups
WiFi stays on continuously. Connect anytime, make changes immediately. Ideal for troubleshooting or frequent adjustments.
Battery impact: Significant (solar recommended)
💡 Pro Tip: Start Conservative
Start with one window (e.g., 8am for 5 minutes). You can always increase frequency later. With solar or a large battery pack, set it to whatever works best for you.
ℹ Important: Your Feeder Always Runs
Configuration Windows are an optional convenience feature, not required for the feeder to operate.
The feeder will always feed per the schedule you set. Configuration windows are only for checking status remotely or updating schedules and preferences.
You can access the controller anytime — press the wakeup button or power-cycle it to connect, change settings, and review the event log.
Some users may never need to access the controller again once the feeding schedule is configured — it just keeps running as long as it has power. After power is restored (ie: new battery) it remembers everything and just starts working — NO RE-PROGRAMMING!
Technical Specifications
Hardware
- Brains: Powerful Microcontroller with integrated WiFi, Bluetooth & flash storage
- Connectivity: WiFi 6 (802.11ax, 2.4 GHz) + Bluetooth LE
- Power: 6V or 12V input from battery (controller auto-detects system voltage)
- Enclosure: Weather & rust / corrosion-resistant housing
Features
- Scheduling: Multiple feeds by clock time or sunrise / sunset, each independently enabled or disabled
- Feed Duration: Up to 60 sec per feed for spin-type feeders; gravity doors open for many hours
- System Voltage: 6V or 12V with automatic detection — no config
- Configuration Windows: 2 time slots, customizable duration
- Event Log: Logs feed events, configuration changes & system notifications
- WiFi Range: Up to 300 ft depending on environment
- Built-in web interface: (http://mywildcore.local) Your phone & controller talk directly to each other
What's Included
- WildCore™ Mini Controller
- Cables for connection to battery and feeder motor
- Quick Start Guide
Want Pro Features Without Cellular?
If you have WiFi reaching your feeder, Plus mode turns your Mini into a cloud-connected feeder — same remote control, status updates, and Ranch Mode as the Pro, just over WiFi instead of cellular.
📶 WiFi-Connected Cloud
Your Mini checks in to the portal over WiFi. Same dashboard, same Ranch Mode, same alerts as the Pro.
💰 Lower Annual Cost
$25/feeder/year for Plus, compared to $50/feeder/year for the cellular Pro plan.
🔄 Activate Anytime
Buy the Mini standalone today, add a Plus plan whenever you're ready. No hardware change required.
First month free on every new Plus activation. No auto-renew — renewal reminder by email.
Ready to Upgrade?
Professional WiFi control with configurable access windows — $99
